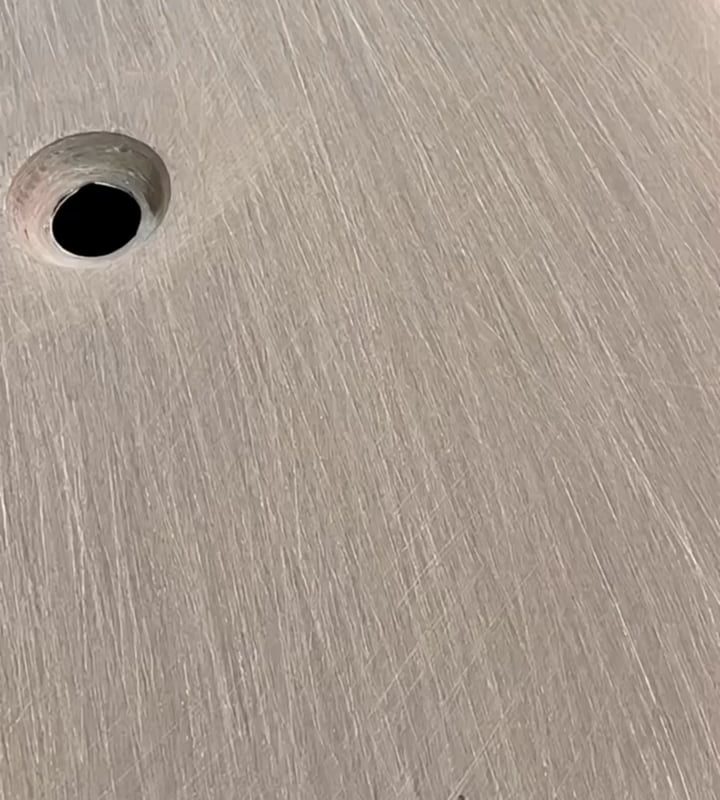

Applying resin coat to sanded carbon fiber components
The Ultimate Guide: Applying Resin Coat to Sanded Carbon Fiber Components (SEO-Optimized)
Carbon fiber components are prized for their strength, lightweight properties, and high-end aesthetic. However, after sanding—whether for repairs, smoothing imperfections, or removing old coatings—the exposed fibers need protection. A resin coat not only restores the sleek finish but also shields the material from UV degradation, moisture, and wear. In this step-by-step guide, you’ll learn how to apply a professional-grade resin coat to sanded carbon fiber for flawless, durable results.
Why Resin Coating is Essential for Sanded Carbon Fiber
Sanding carbon fiber removes its original resin layer, leaving the woven fibers vulnerable. Without protection, the component can delaminate, absorb moisture, or fade due to UV exposure. A fresh resin coat:
- Restores structural integrity.
- Enhances gloss and depth (especially with UV-stable resins).
- Prevents yellowing and oxidation.
- Creates a smooth, easy-to-clean surface.
Tools & Materials You’ll Need
- Epoxy or UV-resistant clear coat resin (marine-grade epoxy works well).
- Fine-grit sandpaper (800–2000 grit).
- Isopropyl alcohol or acetone for cleaning.
- Foam brushes, squeegee, or spray gun.
- Mixing cups and stir sticks.
- Respirator mask, nitrile gloves, and safety goggles.
- Dust-free workspace (garage or ventilated area).
- Polishing compound (optional for mirror finishes).
Step-by-Step Guide: Applying Resin to Sanded Carbon Fiber
1. Prep the Component & Workspace
- Clean Thoroughly: Wipe the sanded surface with isopropyl alcohol to remove dust, oils, or residues. Avoid touching the area with bare hands afterward.
- Mask Surroundings: Use painter’s tape to protect edges and adjacent areas.
- Ensure Ventilation: Resin fumes are toxic—work in a well-ventilated space or wear a respirator.
2. Mix the Resin
- Follow the manufacturer’s instructions for resin-to-hardener ratios.
- Stir slowly for 3–5 minutes to avoid creating air bubbles.
- Let the mixture sit for 1–2 minutes to allow bubbles to rise and pop.
3. Apply the First Resin Coat
- Technique:
- Use a foam brush or squeegee to spread a thin, even layer.
- Work in small sections for better control.
- Tilt the component to ensure resin flows into weave textures.
- Avoid Bubbles: Lightly torch the surface with a heat gun (~6 inches away) to pop air pockets.
4. Cure the Resin
- Cure times vary by product (usually 12–24 hours at room temperature).
- Pro Tip: Elevate the component to prevent dust/debris from sticking to the wet resin.
5. Sand and Repeat (Optional)
- For a glass-smooth finish:
- Lightly sand cured resin with 1000+ grit sandpaper.
- Clean with alcohol and apply a second coat.
6. Final Polishing
- Once fully cured, buff the surface with automotive polishing compound to amplify shine.
Common Mistakes to Avoid
- Rushing the Prep: Dust or grease causes adhesion failure.
- Over-sanding the Resin: Sand between coats gently to avoid scratches.
- Ignoring Safety Gear: Resin is harmful if inhaled or contacted with skin.
FAQs
Q: Can I use polyurethane instead of epoxy resin?
A: Epoxy is best for carbon fiber due to superior adhesion and flexibility. Polyurethane may peel under stress.
Q: How long until the resin fully hardens?
A: Most resins cure in 24 hours but reach full hardness in 3–7 days.
Q: Why does my resin look cloudy?
A: Moisture contamination or incomplete mixing. Sand and reapply in a dry environment.
Conclusion
Resin-coating sanded carbon fiber is a game-changer for restoring and protecting high-performance parts. With meticulous prep, the right materials, and patience, you’ll achieve a showroom-worthy finish that withstands the elements. Whether you’re tuning a car, repairing a bike frame, or crafting custom parts, this guide ensures your carbon fiber stays flawless for years.
Ready to revive your carbon fiber? Share your results or questions below!
