Behind the Scenes: The Intricate Process of Loading an IMAX Film Projector
In an era dominated by digital cinema, IMAX film projection remains an awe-inspiring blend of analog artistry and engineering excellence. For true cinephiles, witnessing a movie projected from an IMAX 15-perf/70mm filmstrip—the gold standard of immersive cinema—is a transcendent experience. But few realize the Herculean effort required to load these colossal reels into the projector. Below, we unravel the fascinating, highly technical choreography behind this rare cinematic ritual.
Why IMAX Film Loading is a Feat of Precision
IMAX film reels are unlike any other motion picture format. A single 90-minute movie (like The Dark Knight or Dune: Part Two) spans 12–18 reels, each weighing up to 300 pounds and stretching 1–3 miles in length. To project images at IMAX’s legendary resolution—nearly 10x larger than standard 35mm film—the projector itself weighs over 2 tons and requires military-grade precision to operate.
A single misstep during loading can scratch the film, disrupt tension, or even halt a screening. It’s a process reserved for highly trained projectionists—and only a handful of theaters worldwide still maintain this capability.
The Anatomy of an IMAX Film Projector
Before diving into the loading process, let’s break down the key components:
- Platter System: Holds the enormous film reels horizontally.
- Rollers and Sprockets: Guides the film through the projector without slipping.
- Vacuum System: Flattens the film during projection to ensure razor-sharp focus.
- Lamp Housing: Generates light intense enough to illuminate IMAX’s massive screens (up to 100 feet tall).
- Soundhead: Reads the film’s analog audio tracks (for non-DMR releases).
Step-by-Step: Loading the IMAX Behemoth
Loading an IMAX projector isn’t just a task—it’s an orchestrated ballet requiring two technicians and meticulous attention to detail.

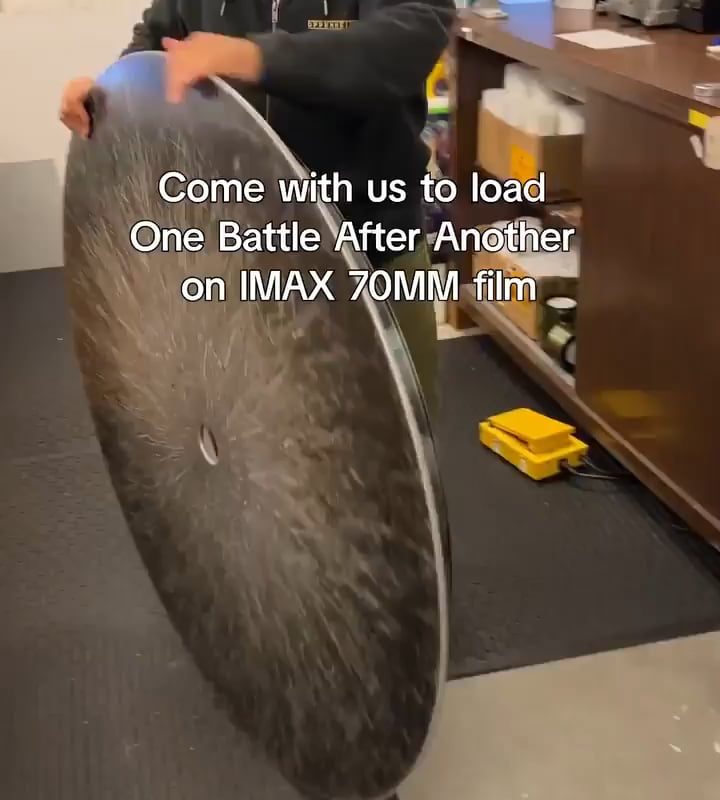

1. Transporting the Reels
- Film reels arrive in shock-proof cases to prevent damage.
- Using hydraulic lifts, projectionists mount each reel onto the platter system, which resembles a giant vinyl turntable.
- Reels are spliced together to form a single 90+ minute print.
2. Threading the Film
- Technicians manually “thread” the filmstrip through a maze of rollers, sprockets, and the vacuum “aperture block.”
- IMAX film runs horizontally (unlike vertical 35mm projection), allowing each frame to be 8x larger for unparalleled detail.
- The vacuum seals the film flat against the gate during projection, eliminating flicker and distortion.
3. Tension Calibration
- Film tension is adjusted via weights and sensors to prevent slack or tearing.
- Too much tension risks snapping the film; too little causes jitter.
4. Final Checks
- Projectionists inspect frames for dust, scratches, or splices under a microscope.
- Audio synchronization is confirmed using timecode strips etched onto the film.
5. Screen Testing
- A short test sequence is projected to verify focus, brightness, and alignment.
Why Few Theaters Still Operate IMAX Film Projectors
Despite its visual supremacy, IMAX film projection is nearly extinct. Challenges include:
- Cost: Prints cost $30,000+ each.
- Logistics: Projectors require permanent installation due to their size.
- Expertise: Decades of institutional knowledge are fading as studios prioritize digital.
Only 30 theaters worldwide (mostly specialty venues like AMC Lincoln Square NYC or BFI IMAX London) still project IMAX film. For now, filmmakers like Christopher Nolan and Quentin Tarantino continue to champion its survival.
The Magic Behind the Screen
Loading an IMAX film projector is a dying art—one that transforms celluloid into pure spectacle. The next time you sit beneath an IMAX screen, remember the thousands of feet of film racing through a labyrinth of gears at 2 miles per hour, delivering visuals that no digital sensor can replicate.
Experience the legacy while it lasts.
