In the shadow of the Cold War, a silicon battle raged quietly between superpowers. While Intel’s 8080 CPU revolutionized computing in the West, the USSR responded with its own copy: the KR580VM80A, a meticulous (though not perfect) clone developed in the late 1970s. Today, we crack open this relic of Soviet engineering to reveal what lies beneath its ceramic casing—and uncover how Communist engineers replicated Western tech under embargo.

The Backstory: How (and Why) the USSR Cloned the Intel 8080

Intel’s 8080, released in 1974, was a landmark 8-bit microprocessor, powering early PCs like the Altair 8800. Isolated by COCOM trade restrictions, Soviet engineers couldn’t legally acquire it. Instead, they acquired chips through espionage or third-party channels, reverse-engineered them, and adapted the design to domestic manufacturing. The result? The KR580VM80A, part of the “КР580” family (КР = Кристалл с Радиальными выводами or “Crystal with Radial Leads”). Functionally identical to the 8080, it became the heart of Soviet computers like the Elektronika NC and Agat workstations.

Under the Microscope: Physical Appearance & Package

1. The Outer Shell:
   The KR580VM80A arrived in a 40-pin ceramic DIP package—far sturdier than Intel’s plastic variant. Gold-plated pins (a Soviet standard for corrosion resistance) protruded from a sand-colored ceramic body, stamped with cryptic Cyrillic markings: “КР580ВМ80А” alongside a hammer-and-sickle logo.

2. Internal Structure:
   Decapping the chip reveals a silicon die measuring ~4.5 x 5 mm, fabricated using n-MOS technology—a nod to Intel’s original process. Soviet fabs, however, lagged behind Intel’s cutting-edge capabilities, relying on 6–8μm process nodes (vs. Intel’s 6μm) with lower transistor density.

Die Analysis: The Soviet Silicon Blueprint

Under electron microscopy, the KR580VM80A’s layout mirrors the 8080’s with variances reflecting Soviet constraints:

• Transistors: Replicated at a functional level, but arranged slightly differently due to lithography limitations. Roughly 6,000 transistors populate the die (matching the 8080).
• Metalization Layers: Visible interconnects show single-layer aluminum routing, unlike Intel’s more advanced multi-layer designs. This led to longer signal paths and lower peak clock speeds (~2 MHz vs. Intel’s 2–3 MHz).
• Clock Generation: The Soviet chip includes an on-board clock generator—an upgrade allowing simpler system integration than the original 8080, which required an external clock chip.
• Die Markings: Etched serial codes and cryptic symbols hint at Soviet fabrication plants like the Voronzh Semiconductor Factory or Angstrem.

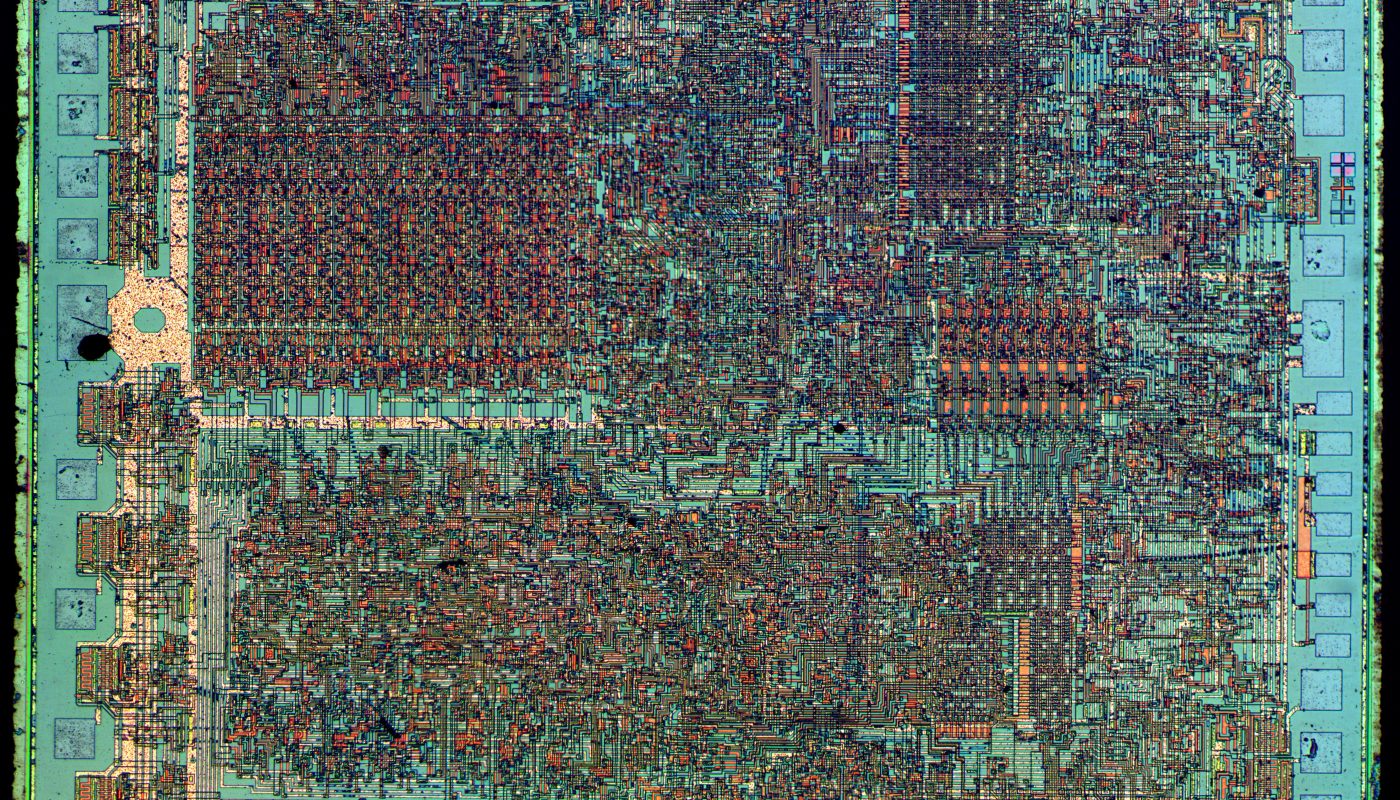

! [Die Shot Comparison] (Visual note: Imagery would show identical ALU/register layouts, but cruder Soviet patterning.)

Reverse Engineering the Reverse Engineers

Intel’s 8080 had been painstakingly disassembled and analyzed. Zenon Przesmycki, a Polish engineer, published a seminal reverse-engineering report in 1980 that likely guided Soviet efforts. Yet the KR580VM80A wasn’t a carbon copy:

• Design Rules: Soviet photolithography constraints forced wider traces and spacing, reducing density.
• Defense Hardening: Some batches were radiation-hardened for military use in missiles or satellites.
• Voltage Tolerance: Ran at Soviet-standard +5V/-5V power, differing from Intel’s implementation.

Legacy: Why the KR580VM80A Matters

Though slower and harder to mass-produce, these clones sustained Soviet computing for decades:

• Domestic Innovation: Enabled homegrown PCs like the DVK-2 and Radio-86RK.
• The Iron Curtain Divide: Highlighted the USSR’s dependence on copying Western tech, stifling true innovation.
• Collectors’ Gold: Today, KR580VM80A chips are prized relics—eBay listings fetch $50–200 for functional units, encapsulating an era of hardware espionage.

Key Takeaways

• 🇷🇺 The KR580VM80A was a functional clone of the Intel 8080, built with cruder Soviet manufacturing tech.
• 🔍 Die analysis reveals minor layout tweaks, single-layer metal, and a simpler clock design.
• ⚙️ Despite limitations, it powered Eastern Bloc computing until the USSR’s collapse.

For historians and tech enthusiasts alike, peeling back the layers of this Soviet silicon reveals more than circuitry—it exposes the ingenuity (and desperation) of Cold War engineering.
